The fan size:

Length: 4150 mm width: 1165 mm height: 2700 mm weight: 2700 kg (weight), not including motor, imported muffler

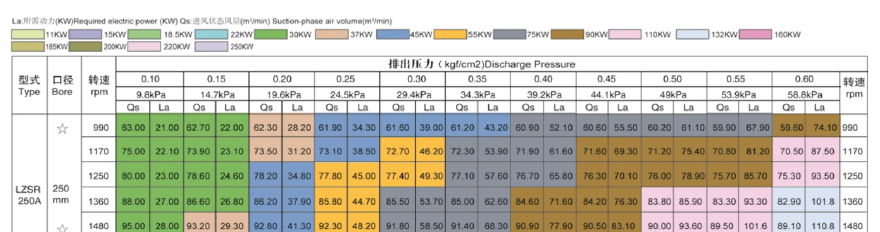

Fan diameter: 250 mm air volume: 58.8 93.2 m3 / min

Booster: 14.7-58.8 kpa motor: 30-132 kw

Standard accessories:

General base, the belt cover, fan belt pulley, the motor pulley, v-belt, import and export muffler (with air filter), safety valve, pressure gauge, anchor bolt

Special accessories (equipped) according to the contract:

Check valve, flexible connector, lubricating oil

Features:

Reasonable structure, small volume, high pressure, high efficiency, large air volume, low noise, smooth operation and good performance, long service life, simple maintenance and so on

Areas of application:

Widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, coal washing, combustion, pressurization, foundry, mines, metallurgy, chemical industry, light industry, building materials, electric power, flour, sand blasting, vacuum, etc.
