The fan size:

Length: 4205 mm width: 1780 mm height: 2820 mm weight: 2820 kg (weight), not including motor, imported muffler

Fan diameter: 350 mm air volume: 140-200 m3 / min

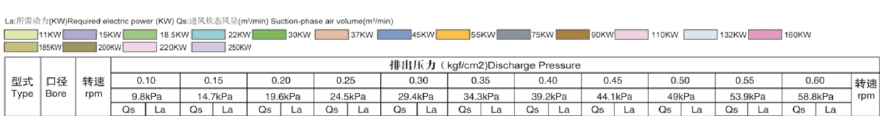

Booster: 9.8-58.8 kpa motor: 30-250 kw

Standard accessories:

General base, the belt cover, fan belt pulley, the motor pulley, v-belt, import and export muffler (with air filter), safety valve, pressure gauge, anchor bolt () three leaves roots blowers

Special accessories (equipped) according to the contract:

Check valve, flexible connector, lubricating oil

Features:

Reasonable structure, small volume, high pressure, high efficiency, large air volume, low noise, smooth operation and good performance, long service life, simple maintenance and so on

Areas of application:

Widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, coal washing, combustion, pressurization, foundry, mines, metallurgy, chemical industry, light industry, building materials, electric power, flour, sand blasting, vacuum, etc. Three leaves roots blowers
