- Size: 1
- Place of Origin: china
- Brand Name: lvzhou machinery co., LTD
- Model Number: LZSR200
- Weight: 860.000 kg
The fan size:
Length: 3380 mm width: 1045 mm height: 2110 mm weight: 860 kg (weight), not including motor, imported muffler

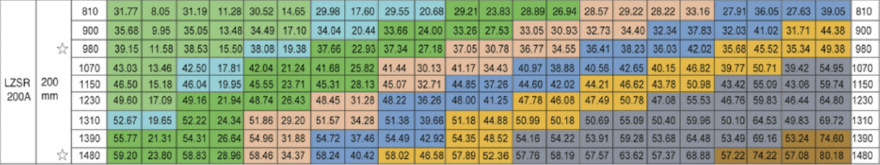

Fan diameter: 200 mm air volume: 26.3 59.2 m3 / min
Booster: 9.8-58.8 kpa motor: 15-90 kw
Standard accessories:
General base, the belt cover, fan belt pulley, the motor pulley, v-belt, import and export muffler (with air filter), safety valve, pressure gauge, anchor bolt
Special accessories (equipped) according to the contract:
Check valve, flexible connector, lubricating oil

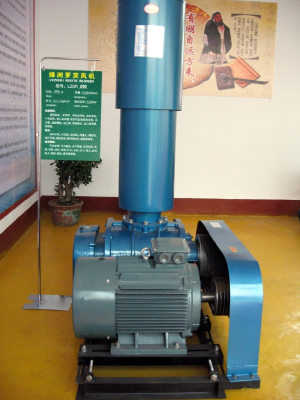

Characteristics: roots blower)
Reasonable structure, small volume, high pressure, high efficiency, large air volume, low noise, smooth operation and good performance, long service life, simple maintenance and so on
Areas of application:
Widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, coal washing, combustion, pressurization, foundry, mines, metallurgy, chemical industry, light industry, building materials, electric power, flour, sand blasting, vacuum, etc.
