The fan size:

Length: 1300 mm width: 430 mm height: 840 mm weight: 90 kg (weight), not including motor, imported muffler

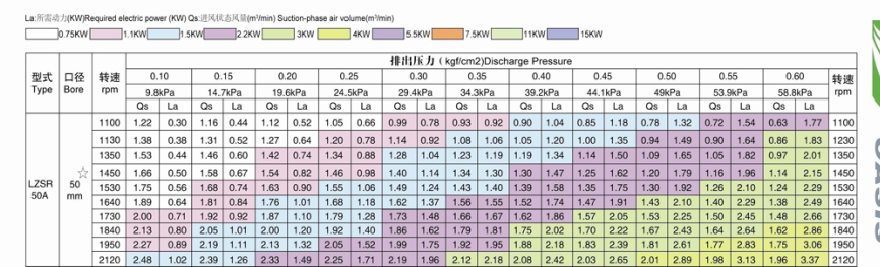

The fan diameter: 50 mm air volume: 0.5-2.5 m3 / min

Booster: 9.8-58.8 kpa motor: 0.75-4 kw

Standard accessories:

General base, the belt cover, fan belt pulley, the motor pulley, v-belt, import and export muffler (with air filter), safety valve, pressure gauge, anchor bolt

Special accessories (equipped) according to the contract: check valve, flexible connector, lubricating oil (roots blower)

Features:

Reasonable structure, small volume, high pressure, high efficiency, large air volume, low noise, smooth operation and good performance, long service life, simple maintenance and so on

Areas of application: widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, coal washing, combustion, pressurization, foundry, mines, metallurgy, chemical industry, light industry, building materials, electric power, flour, sand blasting, vacuum, etc.
