The fan size:

Length: 1430 mm width: 500 mm height: 910 mm weight: 100 kg (weight), not including motor, imported muffler

Fan diameter: 65 mm air volume: 0.76-3.65 m3 / min

Booster: 9.8-58.8 kpa motor: 0.75-5.5 KW

Standard accessories:

General base, the belt cover, fan belt pulley, the motor pulley, v-belt, import and export muffler (with air filter), safety valve, pressure gauge, anchor bolt

Special accessories (equipped) according to the contract:

Check valve, flexible connector, lubricating oil

Features:

Reasonable structure, small volume, high pressure, high efficiency, large air volume, low noise, smooth operation and good performance, long service life, simple maintenance and so on

Areas of application:

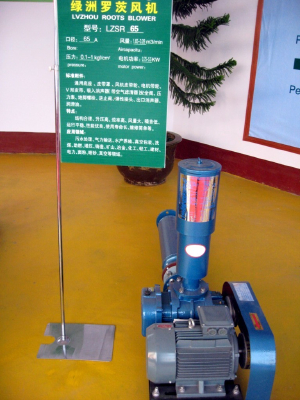

Widely used in sewage treatment, pneumatic conveying, vacuum packaging, aquaculture, coal washing, combustion, pressurization, foundry, mines, metallurgy, chemical industry, light industry, building materials, electric power, flour, sand blasting, vacuum, etc. (roots blower)
